Product Summary

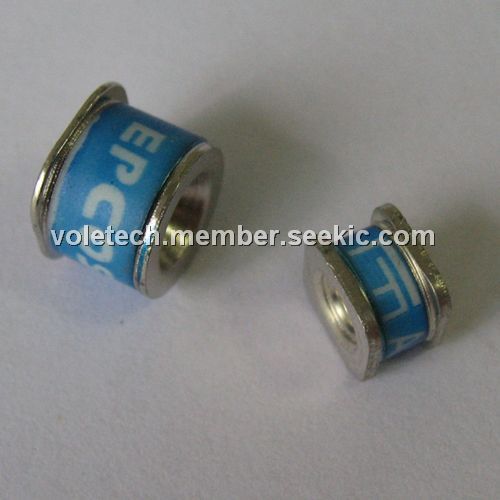

The A80-A350X is a 2-Electrode-Arrester.
Parametrics
Absolute maximum ratings: (1)DC spark-over voltage: 350 V; (2)Impulse spark-over voltage: at 100 V/μs - for 99 % of measured values < 700, typical values of distribution < 650; (3)at 1 kV/μs - for 99 % of measured values < 900, typical values of distribution < 800; (4)Nominal impulse discharge current (wave 8/20 μs): 20 kA; (5)Single impulse discharge current (wave 8/20 μs): 25 kA; (6)Nominal alternating discharge current (50 Hz, 1 s): 20 A; (7)Alternating discharge current (50 Hz, 9 cycles): 100 A; (8)Insulation resistance at 100 Vdc > 10 GΩ; (9)Capacitance at 1 MHz < 1.5 pF; (10)Arc voltage at 1 A ~ 15 V; (11)Glow to arc transition current: ~ 0.5 A; (12)Glow voltage: ~ 60 V; (13)Operation and storage temperature: -40 to +90 ℃; (14)Climatic category (IEC 60068-1): 40/ 90/ 21.

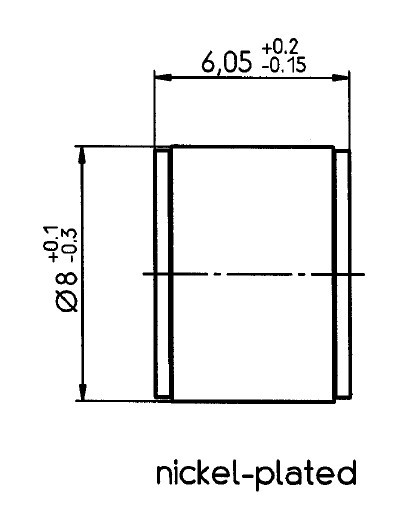

Diagrams
 |
 A80-1 |
