Product Summary
The EC90X is a 2-electrode arrester.
Parametrics
Electrical specifications: (1)DC spark-over voltage: 90 V, ± 20 %; (2)Impulse spark-over voltage: at 100 V/μs - for 99 % of measured values < 500 V, typical values of distribution < 450 V; (3)Service life: 10 operations 50 Hz, 1 s 5 A, 1 operations 50 Hz, 0.18 s (9 cycles) 20 A, 10 operations 8/20 μs 5 kA, 1 operation 8/20 μs 10 kA; (4)Insulation resistance at 50 Vdc > 1 GΩ; (5)Capacitance at 1 MHz < 1 pF.
Features
Features: (1)Standard size; (2)High current rating; (3)Very fast response time; (4)Stable performance over life; (5)Very low capacitance; (6)High insulation resistance; (7)RoHS-compatible.

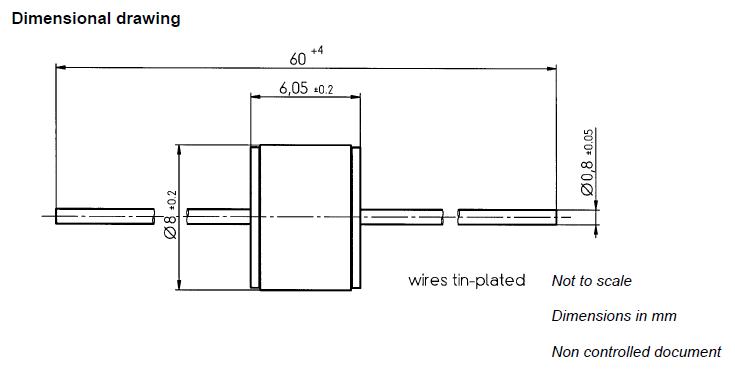

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EC90X |
EPCOS |
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors 2 Electrode 8x6mm light duty |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
EC90X |
EPCOS |
Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors 2 Electrode 8x6mm light duty |
Data Sheet |
|
|
