Product Summary

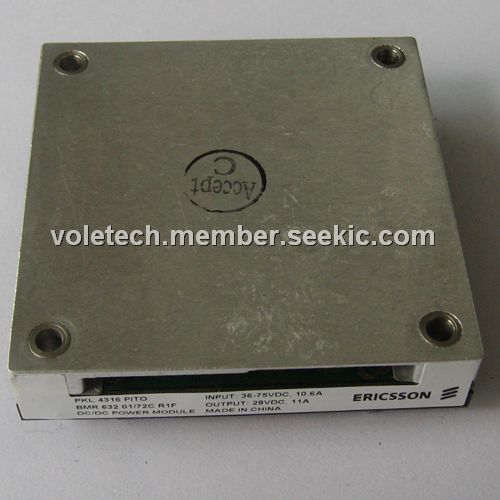

The PKL4316PITO series represents another one of Ericsson’s "industry first" achievements in the continuing development of our "Third Generation" of high-density, high-efficiency power modules. The PKL4316PITO module packs 106.7 W/in3 at 91% efficiency (28.2V @ 11A) in an industry standard footprint. The PKL4316PITO package has been enhanced to include two additional output pins for motherboard connection reliability at this high power.
Parametrics
Absolute maximum ratings: (1)Maximum Operating Case Temperature: – 40 to +100 ℃; (2)Storage temperature: – 40 to +125 ℃; (3)Input voltage: Continuous: –0.5 to + 80 Vdc, Transient(100ms): +100 Vdc; (4)Isolation voltage (input to output test voltage): 1,500 Vdc; (5)Remote control voltage: 12 Vdc; (6)Inrush transient: 1 A2s.
Features
Features: (1)High Efficiency, 90% Typ. at 11A (full load); (2)High Power Density, 106.7 W/in3; (3)Fast Dynamic Response, 100 ms, ±750 mVpeak Typ; (4)Parallelable with no external components; (5)1,500 Vdc isolation voltage; (6)Max. case temperature +100℃; (7)Demonstrated compliance with isolation requirements equivalent to Basic Isolation per UL60 950; (8)UL/ULC 1950 and UL/ULC 60 950 Recognized; (9)MTBF > 3 million hours in accordance; (10)with Bellcore TR 332; (11)Input Transient Specification 100V, 100ms.
