Product Summary
The VI-250-CV Family with over 8 million shipped, is Vicor’s first generation of "zero-current-switching" component-level DC-DC converters.
Parametrics
Absolute maximum ratings: (1)Input to output: 3,000 VRMS Baseplate earthed; (2)Output to baseplate: 500 VRMS; (3)Input to baseplate: 1,500 VRMS; (4)Efficiency: 80-90%; (5)Baseplate to sink: 0.2 ℃/Watt With Vicor P/N 01777; (6)Thermal shutdown (Drivers only): 90 ℃ min, 95 ℃ typ and 105 ℃ max at Cool and recycle power to restart; (7)Weight: 6.0 (170) Ounces (Grams).
Features
Features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT, AUSTEL; (3)Up to 90% Efficiency; (4)Size: 4.6" x 2.4" x 0.5" (116,8 x 61,0 x 12,7); (5)Remote Sense and Current Limit; (6)OVP, Thermal Shutdown; (7)Logic Disable; (8)Wide Range Output Adjust; (9)Compatible Power Booster Modules; (10)ZCS Power Architecture; (11)Low Noise FM Control; (12)CE Marked.

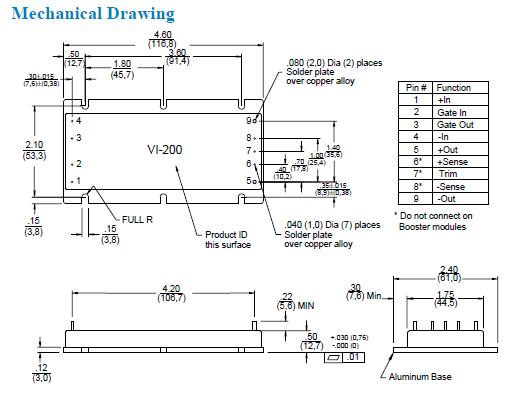

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-250-CV |
|
CONVERTER MOD DC/DC 5V 150W |
Data Sheet |
|
|
||||||
|
VI-250-CV-B1 |
|
CONVERTER MOD DC/DC 5V 150W |
Data Sheet |
|
|
||||||
|
VI-250-CV-F1 |
|
CONVERTER MOD DC/DC 5V 150W |
Data Sheet |
|
|
||||||
|
VI-250-CV-F2 |
|
CONVERTER MOD DC/DC 5V 150W |
Data Sheet |
|
|
||||||
|
VI-250-CV-F3 |
|
CONVERTER MOD DC/DC 5V 150W |
Data Sheet |
|
|
||||||
|
VI-250-CV-F4 |
|
CONVERTER MOD DC/DC 5V 150W |
Data Sheet |
|
|
||||||
|
VI-250-CV-S |
|
CONVERTER MOD DC/DC 5V 150W |
Data Sheet |
|
|
||||||
