Product Summary
The 1206L075WRT Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Parametrics
Absolute maximum ratings: (1)I hold: 0.75 A; (2)I trip: 1.50 A; (3)V max: 13.2 V; (4)I max: 100 A; (5)Pd typ.: 0.6 W; (6)maximum time to trip: current: 8.00 A, time: 0.20 sec.; (7)resistance: Rmin: 0.090Ω, R1max: 0.35Ω.
Features
Features: (1)RoHS compliant, lead-free and halogen-free; (2)fast response to fault currents; (3)compact design saves board space; (4)low resistance; (5)low-profile; (6)compatible with high temperature solders.

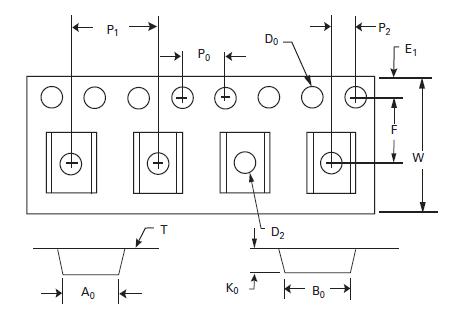

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1206L075WRT |
Littelfuse |
PTC Resettable Fuses 6V .75A .2s |
Data Sheet |
Negotiable |
|
|||||||||||||
