Product Summary

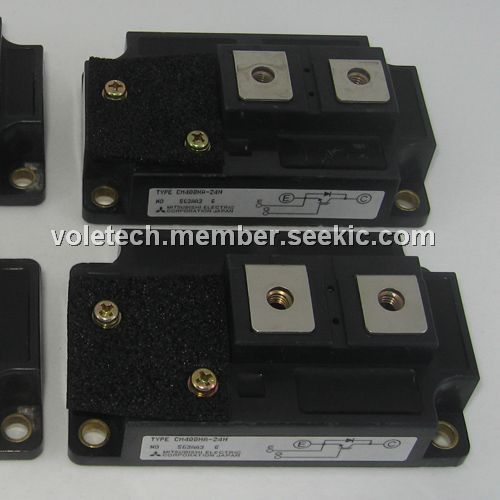

The CM400HA-24H IGBT Module is designed for use in switching applications. Each module consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Parametrics
Absolute maximum ratings: (1)Junction Temperature: -40 to 150 ℃; (2)Storage Temperature: -40 to 125 ℃; (3)Collector-Emitter Voltage: 1200 Volts; (4)Gate-Emitter Voltage: ±20 Volts; (5)Collector Current (Tc = 25℃): 400 Amperes; (6)Peak Collector Current (Tj ≤ 150℃): 800 Amperes; (7)Emitter Current (Tc = 25℃): 400 Amperes; (8)Peak Emitter Current: 800* Amperes; (9)Maximum Collector Dissipation (Tc = 25℃): 2800 Watts; (10)Mounting Torque, M6 Main Terminal: 1.96~2.94 N · m; (11)Mounting Torque, M6 Mounting: 1.96~2.94 N · m; (12)Mounting Torque, M4 Terminal: 0.98~1.47 N · m; (13)Weight: 400 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.
Features
Features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

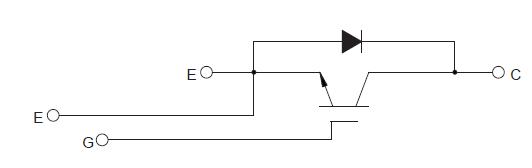

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM400HA-24H |
|
IGBT MOD SGL 1200V 400A H SER |
Data Sheet |
Negotiable |
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
 |
CM400HA-24A |
|
IGBT MOD SGL 1200V 400A A SERIES |
Data Sheet |
|
|
||||||||||||||||
|
CM400HA-24H |
|
IGBT MOD SGL 1200V 400A H SER |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
CM400HG-66H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
CM400HB-90H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
CM400HA-24 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
CM400DY-66H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
