Product Summary

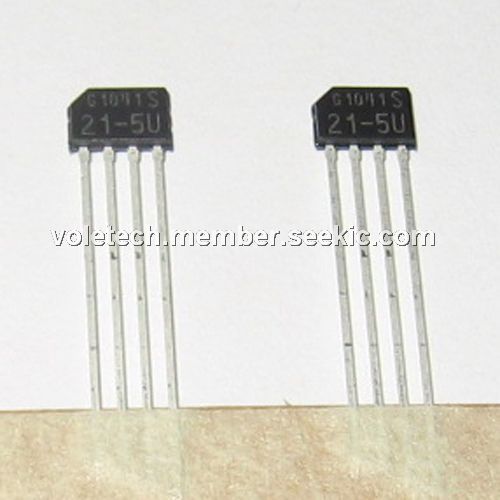

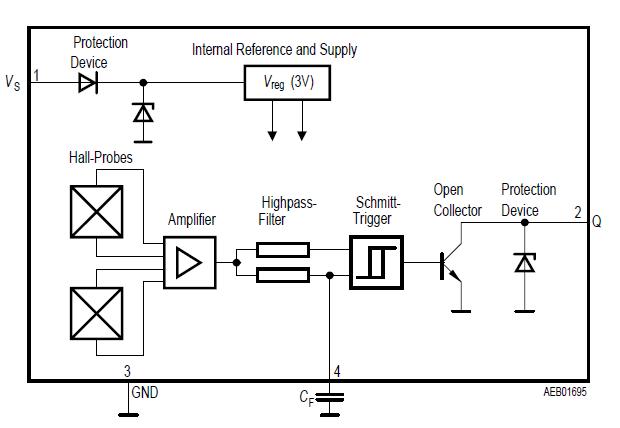

The TLE 4921-5U is comprised of a supply voltage reference, a pair of Hall probes spaced at 2.5 mm, differential amplifier, filter for offset compensation, Schmitt trigger, and an open collector output. The TLE 4921-5U was designed to have a wide range of application parameter variations. Differential fields up to ± 80 mT can be detected without influence to the switching performance.
Parametrics
Absolute maximum ratings: (1)Supply voltage: -35 V min and 30 V max; (2)Output voltage: -0.7 V min and 30 V max; (3)Output current : 50 mA; (4)Output reverse current: 50 mA; (5)Capacitor voltage: -0.3 V min and 3 V max; (6)Junction temperature: 150 ℃ at 5000 h; (7)Junction temperature: 160 ℃ at 2500 h; (8)Junction temperature: 170 ℃ at 1000 h ; (9)Junction temperature: 210 ℃ at 40 h; (10)Storage temperature: -40 to 150 ℃; (11)Thermal resistance P-SSO-4-1: 190 K/W max; (12)Current through inputprotection device: 200 mA at t < 2 ms; v = 0.1; (13)Current through outputprotection device: 200 mA at t < 2 ms; v = 0.1.
Features
Features: (1)Advanced performance; (2)High sensitivity; (3)Symmetrical thresholds; (4)High piezo resistivity; (5)Reduced power consumption; (6)South and north pole pre-induction possible; (7)AC coupled; (8)Digital output signal; (9)Two-wire and three-wire configuration possible; (10)Large temperature range; (11)Large airgap; (12)Low cut-off frequency; (13)Protection against overvoltage; (14)Protection against reversed polarity; (15)Output protection against electrical disturbances.
