Product Summary

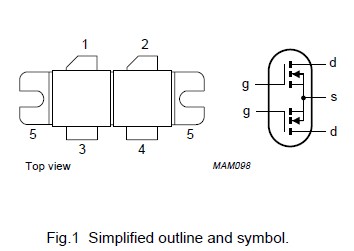

The BLF278 is a VHF push-pull power MOS transistor encapsulated in a 4-lead, SOT262A1 balanced flange package with two ceramic caps. The mounting flange provides the common source connection for the transistors.
Parametrics
Absolute maximum ratings: (1)VDS, drain-source voltage: 125 V max; (2)VGS, gate-source voltage: ±20 V max; (3)ID, drain current (DC): 18 A max; (4)Ptot, total power dissipation: 500 W max at Tmb ≤ 25 ℃; total device; both sections equally loaded; (5)Tstg, storage temperature: -65 +150 ℃; (6)Tj, junction temperature: - 200 ℃ max.
Features
Features: (1)High power gain; (2)Easy power control; (3)Good thermal stability; (4)Gold metallization ensures excellent reliability.
Diagrams
