Product Summary

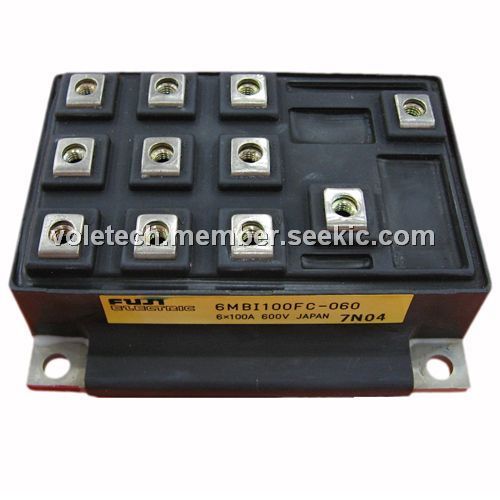

The 6MBI100FC-060 is a IGBT module.
Parametrics
Absolute maximum ratings: (1)collector-emitter: 600V; (2)gate-emitter: ±20V; (3)collector current: 100 A, 200 A at 1ms; (4)maximum loss: 360 W; (5)junction temperature: +150 ℃; (6)storage temperature: -40 to +125 ℃; (7)quality: 510 g.
Features
Features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

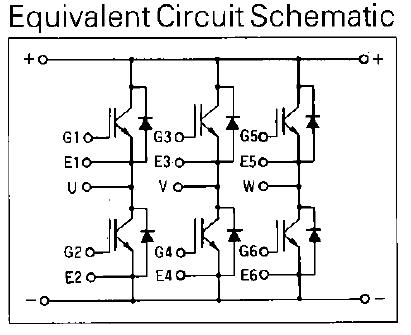

Diagrams
